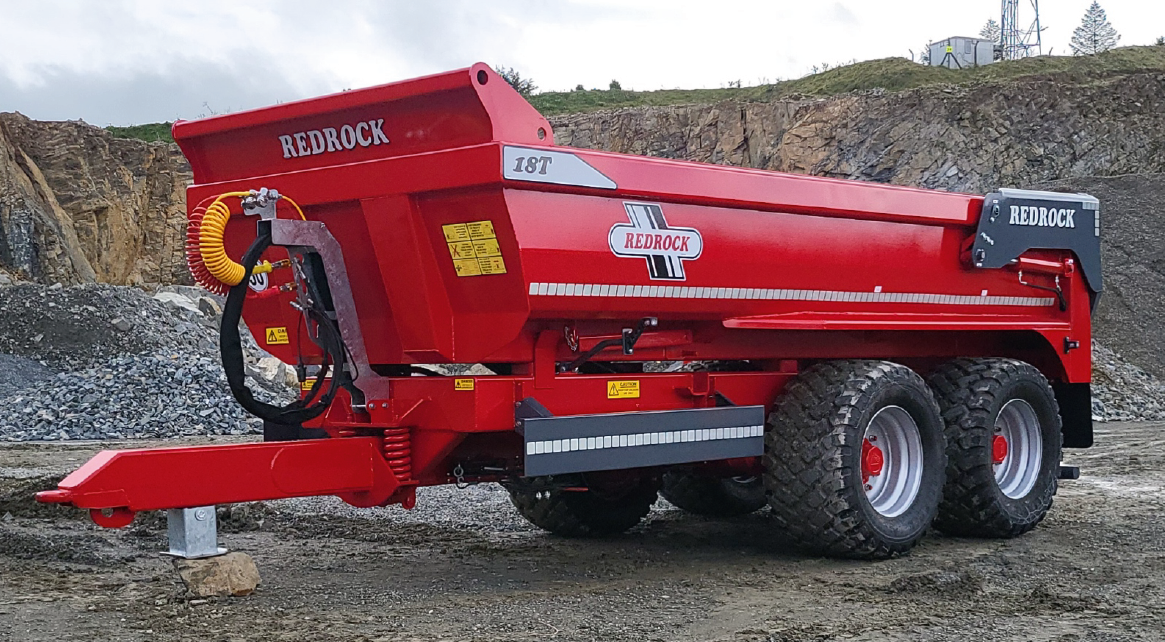

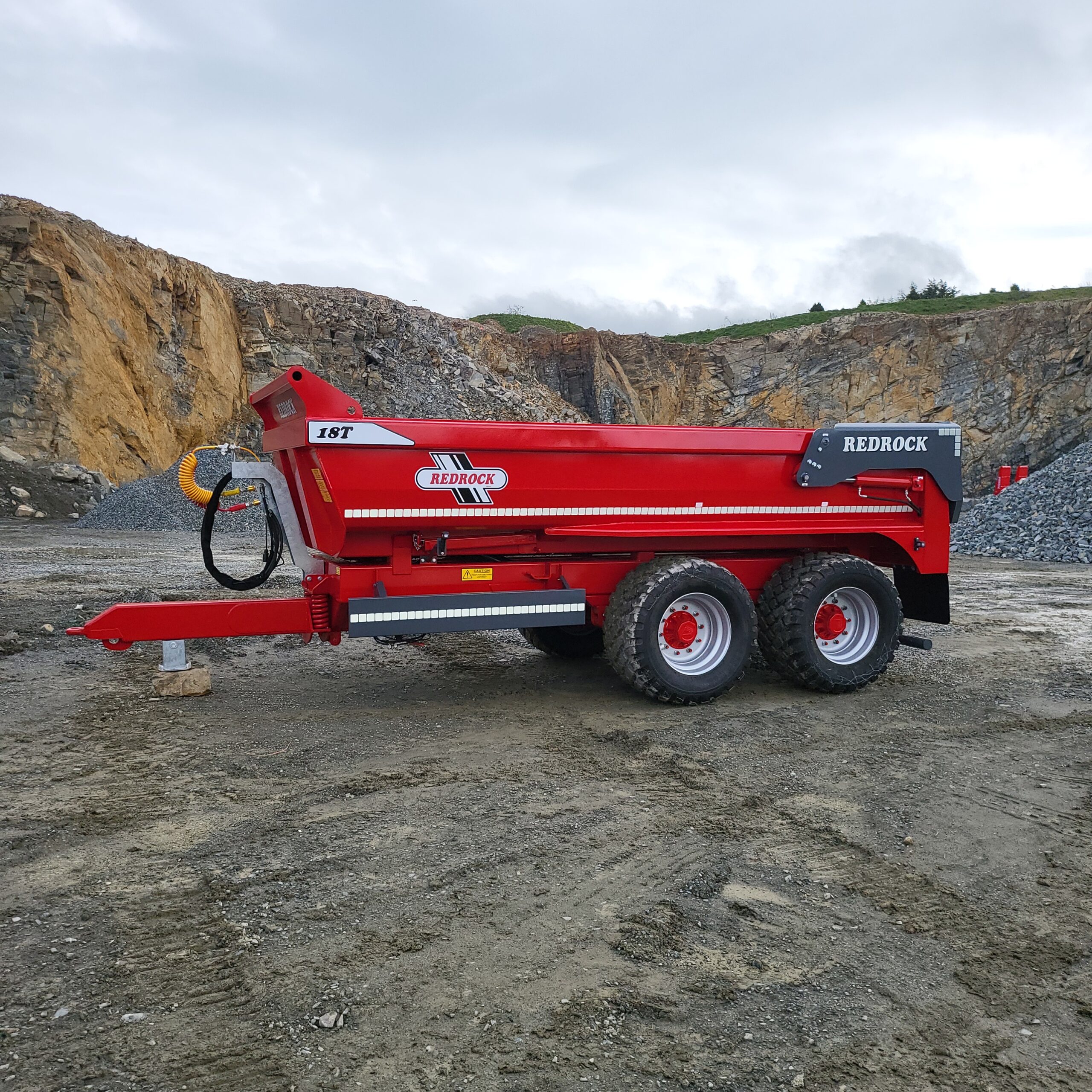

Redrock Half Pipe Dump Trailer
New in the Redrock range are the Half pipe dump trailers. These trailers are available in 3 variants, the 16, 18 and 20 tonner, and have a bucket capacity between 9 m³ and 11.4 m³.
| Type | M3 |
|---|---|
| 16 ton kipper | 9 m3 |
| 18 ton kipper | 10.2 m3 |
| 20 ton kipper | 11.4 m3 |
Standard Features Include
- 6 mm steel floor & 6mm steel sides at the 16’ Trailers
- 8 mm steel floor & 8mm steel sides at the 18’/20’ Trailers
- Sprung drawbar
- Welded towing eye
- 2 tipping cylinders
- 10 stud commercial axles
- Seven leaf spring kit at the 16’ Trailers
- Single leaf spring kit at the 18’/20’ Trailers
- 2 Line Air Brake System
- Hydraulic Jack
- On 385/65 R22.5
Options
- Swivel hitch eye
- Bolt on swivel hitch eye
- 8 mm body and sides at the 16’ Trailers
- Hardox body and sides
- Rear bumber
- Side crash barriers
