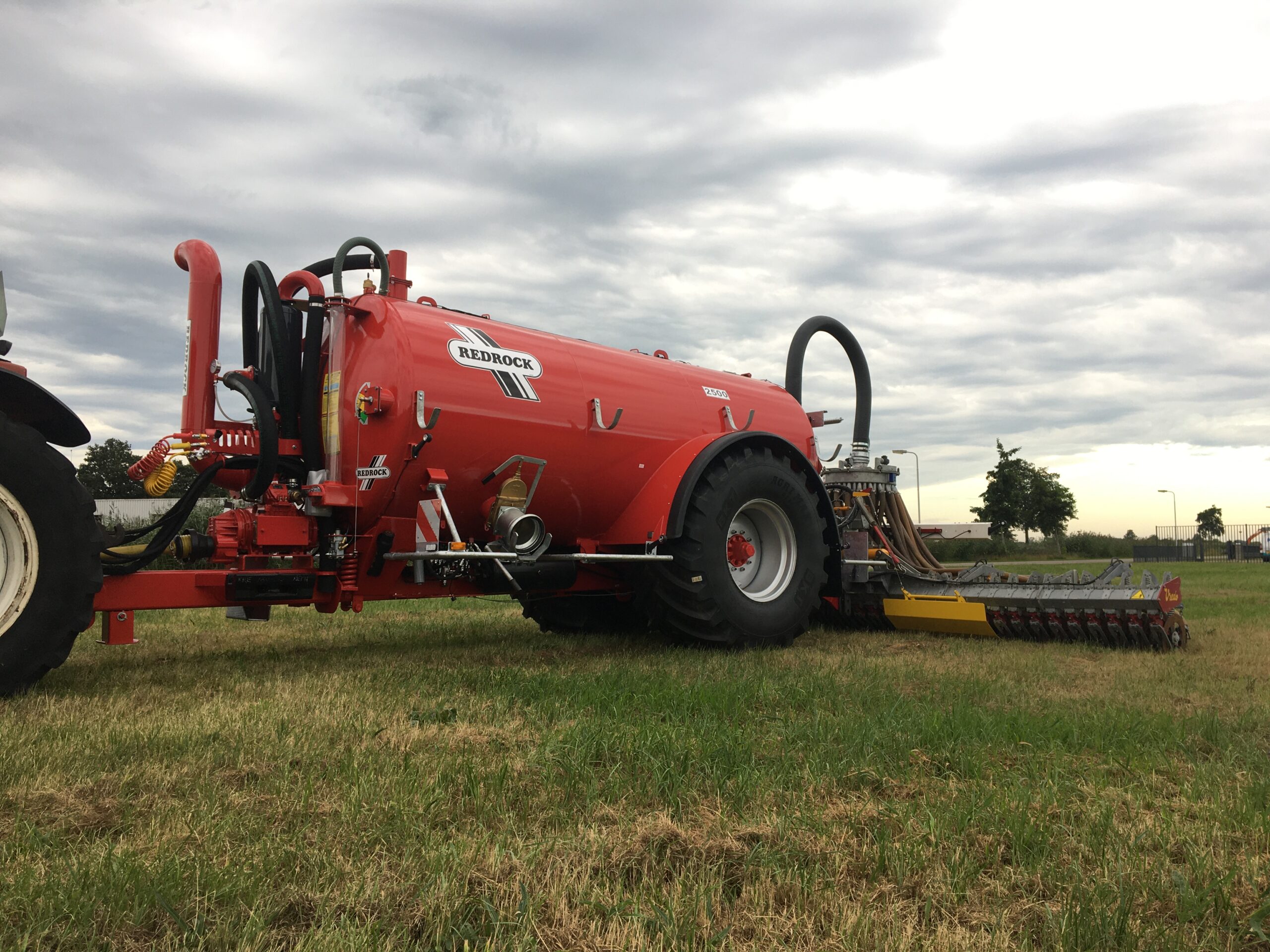

REDROCK SINGLE AXLE SLURRY TANKS UP TO 14,000 LITRES

This series of slurry tanks offers a choice of five models. Many of these tanks have wheel housings cut out of the tank, allowing for wide tyres to be fitted below the tank. 1050/50R32 tyres can be fitted on the 2250, 2500 and 3000 tanks.

SINGLE-AXLE SLURRY TANKS FROM 8,650 UP TO 14,000 LITRES

Redrock 1800Redrock 2050
Capacity (Liter)8.6509.550
Vacuum pump (L/min)9.00011.000
Standard wheels550/60 R 22.5550/60 R 22.5
Total width (mm)2.5502.600
Total length (mm)6.7007.050
Tank diameter (mm)1.7001.700
Redrock 2250Redrock 2500Redrock 3000
Capacity (Liter)10.50011.70014.000
Vacuum pump (L/min)11.00011.00013.800
Standard wheels800/65 R 32800/65 R 32800/65 R 32
Total width (mm)2.6002.6002.600
Total length (mm)7.2007.3007.300
Tank diameter (mm)1.8001.8002.000

Standard equipment

  • 8 or 10 stud HD Axle
  • 2 line Air Brake System
  • LED road light
  • Heavy duty Hydraulic rear valve
  • 6 mm rolled steel construction
  • Anti-enclosure rings for durability and strength
  • 4 fill points and a wash hose valve
  • Hydraulic change over valve on vacuum pump
  • 1 quick attach fill valve & Quick attach suction hose
  • 75 cm Rear Dome
  • Complete painted in Redrock Red
  • Hydraulic Jack

Options

  • Several tire sizes
  • 6 meter suction hose instead of 4,5 meter suction hose
  • 8” Fill valve & 8”suction hose instead of 6” fill valve & 6”suction hose
  • 11.000 L/min vacuum pump
  • 13.800 L/min vacuum pump
  • 6”or 8” self fill boom
  • Extra Perrot quick attach on the tank (max 4)
  • 4”sight tube
  • Sprung drawbar
  • Rear tow hitch
  • Mudguards
  • Wide angle PTO shaft
  • 8” Vogelsang turbo filler fitted to 8”self fill boom
  • Lift or 4 point linkage on the rear
  • Flashing beacon
  • Hydraulic mixing system
  • Galvanized vacuum tank

Are you looking for a specific version of a tank? Please feel free to contact one of our Redrock specialists.
